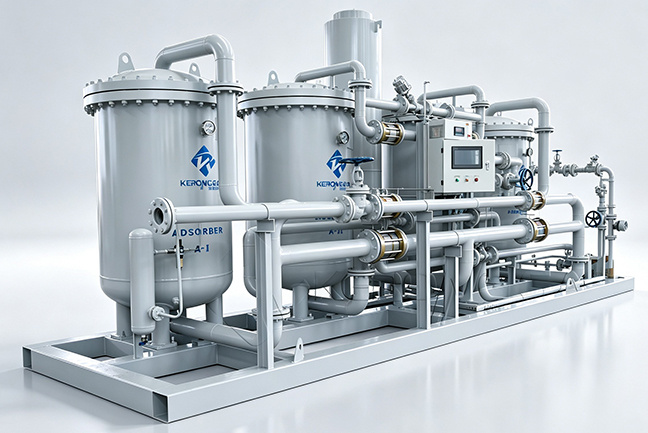

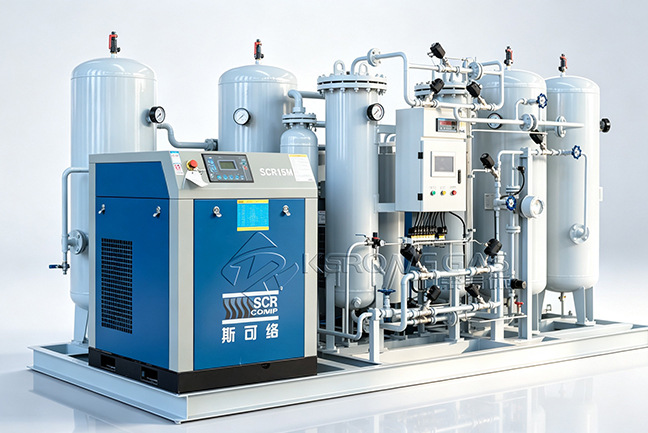

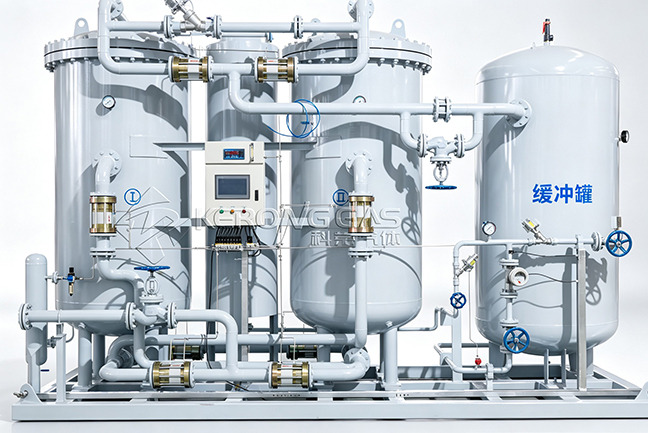

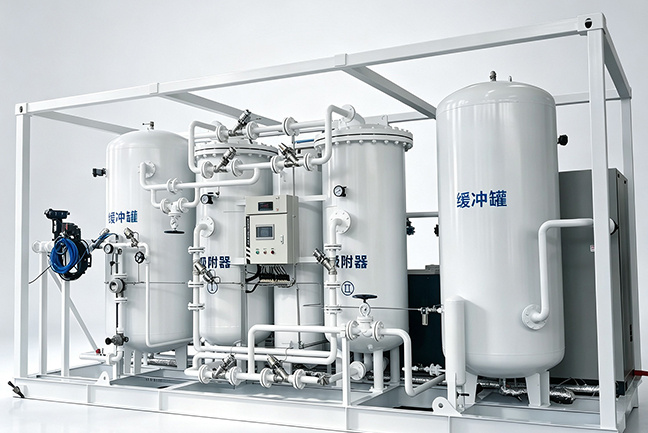

PSA Nitrogen Generator

High efficiency PSA adsorption system ensures stable nitrogen output and low operating cost.

Capacity range from 10 to 250 Nm³/h, purity up to 99.999%.

Modular skid-mounted structure for fast installation and minimal floor space.

Advanced CMS material with long service life and optimized cycle control.

Fully automated PLC control with status monitoring and intelligent alarm system.

Wide application scope: chemical, metallurgy, electronics, food & beverage, oil & gas.

OEM/ODM customization available to meet special industry requirements.

Send Message Inquiry Now

Product Profile

PSA nitrogen generator is composed of air compressor,air treatment device, air buffer tank, nitrogen generator host, control and monitoring system, etc. The pressure swing adsorption nitrogen production technology uses the characteristics of selective adsorption of carbon molecular sieves,adoptscycle period of pressurized adsorption, decompression desorption, make compressed air enters the adsorption tower alternately (it can also be completed in a single tower) to achieve the separation of nitrogen and oxygen in the air, so as to continuously and stably produce high-purity nitrogen products.Widely used in chemical industry, steel, metallurgy, laboratory, new energy, food, medicine, shipping, coal, tire and many other fields.

Industry Application

Chemicals & specialty products
Water treatment
Food & drinks
Pulp & Paper
Metal
Medical insurance
Oil & gas
Electronic product

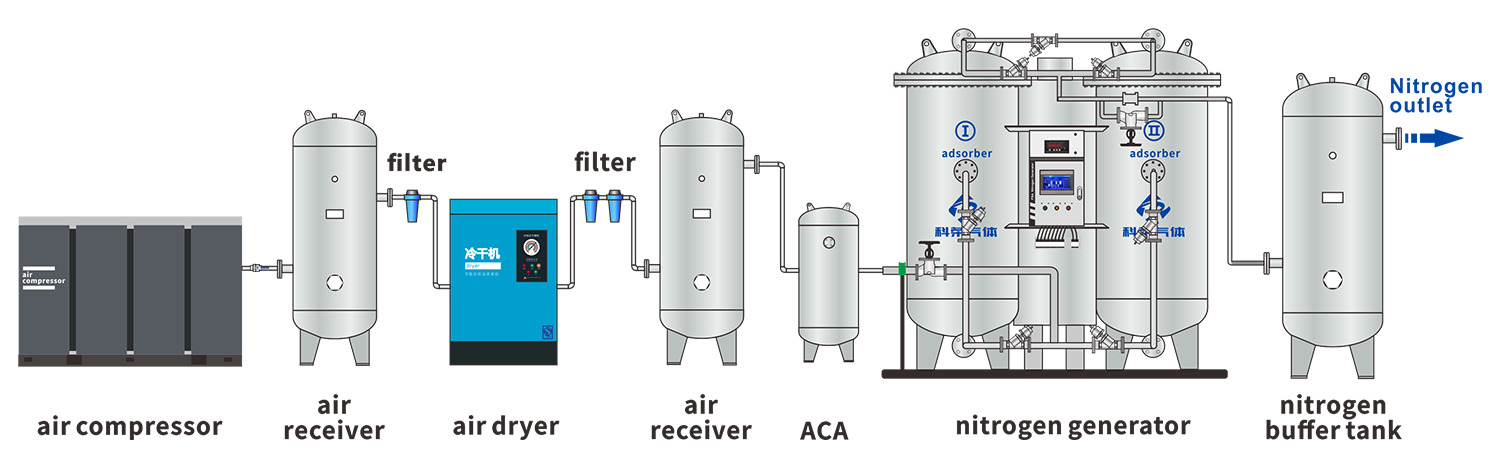

Technical Flow Chart

The pressure swing adsorption Nitrogen generator consists of an air compressor, an air treatment device, an air buffer tank, an Nitrogen generator host, a control and monitoring system, etc.

Technical Parameters

No.	Model	Nitrogenpurity （%）	（Nm³/h）Capacity	Dischargepressure （Mpa）
1	KYPN-10	95-99.9995	10	0.4-0.8
2	KYPN-20		20
3	KYPN-40		40
4	KYPN-60		60
5	KYPN-50		50
6	KYPN-100		100
7	KYPN-130		130
8	KYPN-180		180
9	KYPN-200		200
10	KYPN-250		250
